TRACK IS GONE.
A pivot hardware system that mounts entirely to the wall — no overhead track, no ceiling motor, no wasted space above. Works with standard door panels so you keep the style you want.
The door rotates.
The room opens.

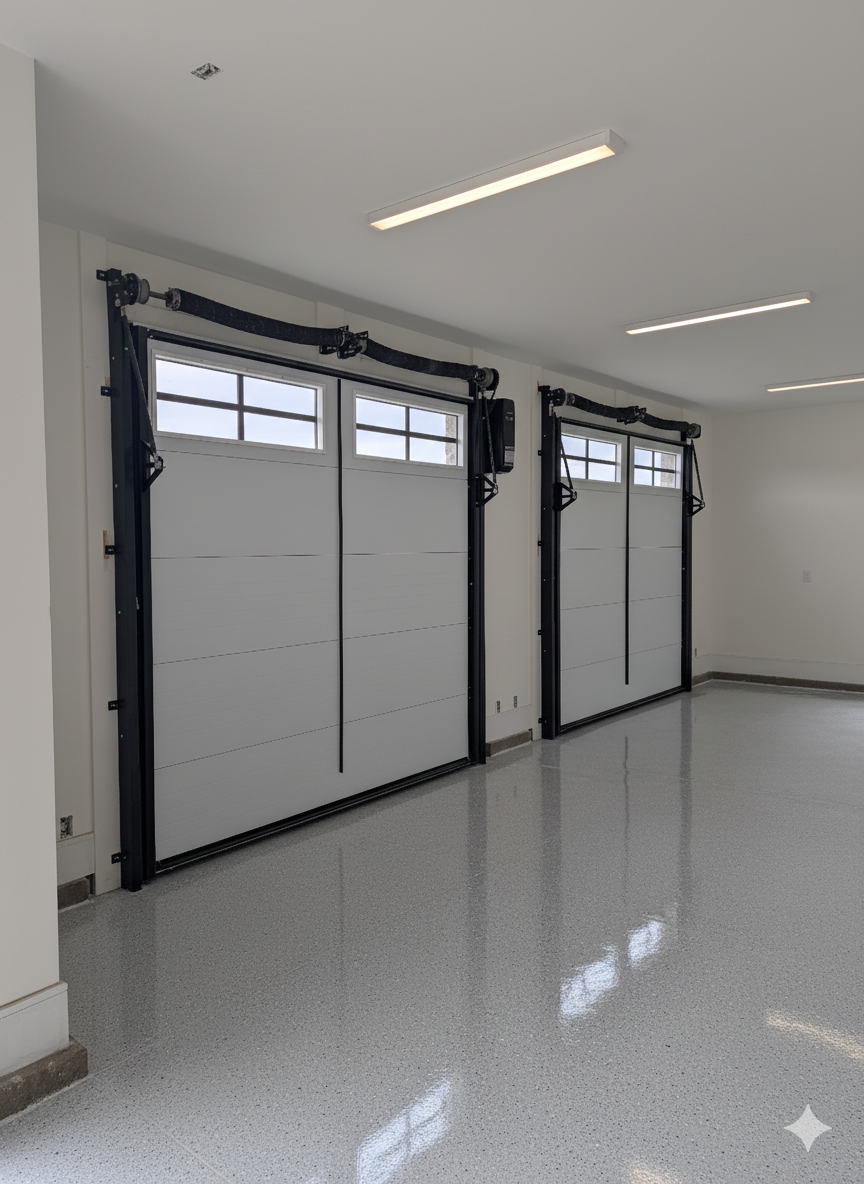

Instead of rolling up on a track, this system locks your existing door panels into a single rigid piece and rotates them open. No hinges. No rollers. No track running across your ceiling. The whole system lives on the wall.
By keeping the door in the opening and simply rotating it, we've dramatically reduced the number of moving parts — and every part that's gone is one that can't wear out, make noise, or need service.
No Overhead Track or Motor
The entire system — hardware, drive, and controls — mounts to the wall. Your ceiling is completely clear from installation day forward.
Fewer Moving Parts, Stronger System
No hinges. No rollers. No lubrication schedule. What's removed is what typically fails first on a standard door — giving you a system that's quieter, tighter, and longer-lasting.
Built for Today's Taller Openings
Modern homes are being built with 9 and 10-foot openings. This system is designed for exactly that — no low-clearance workarounds, no compromises.
Your style.
Our hardware.
The beauty of this system is how it integrates with common garage door sections you can source locally. Our hardware locks those panels together into a single rigid door and handles all the movement — no special door required. That means you're choosing from the full range of door styles you'd already be considering.

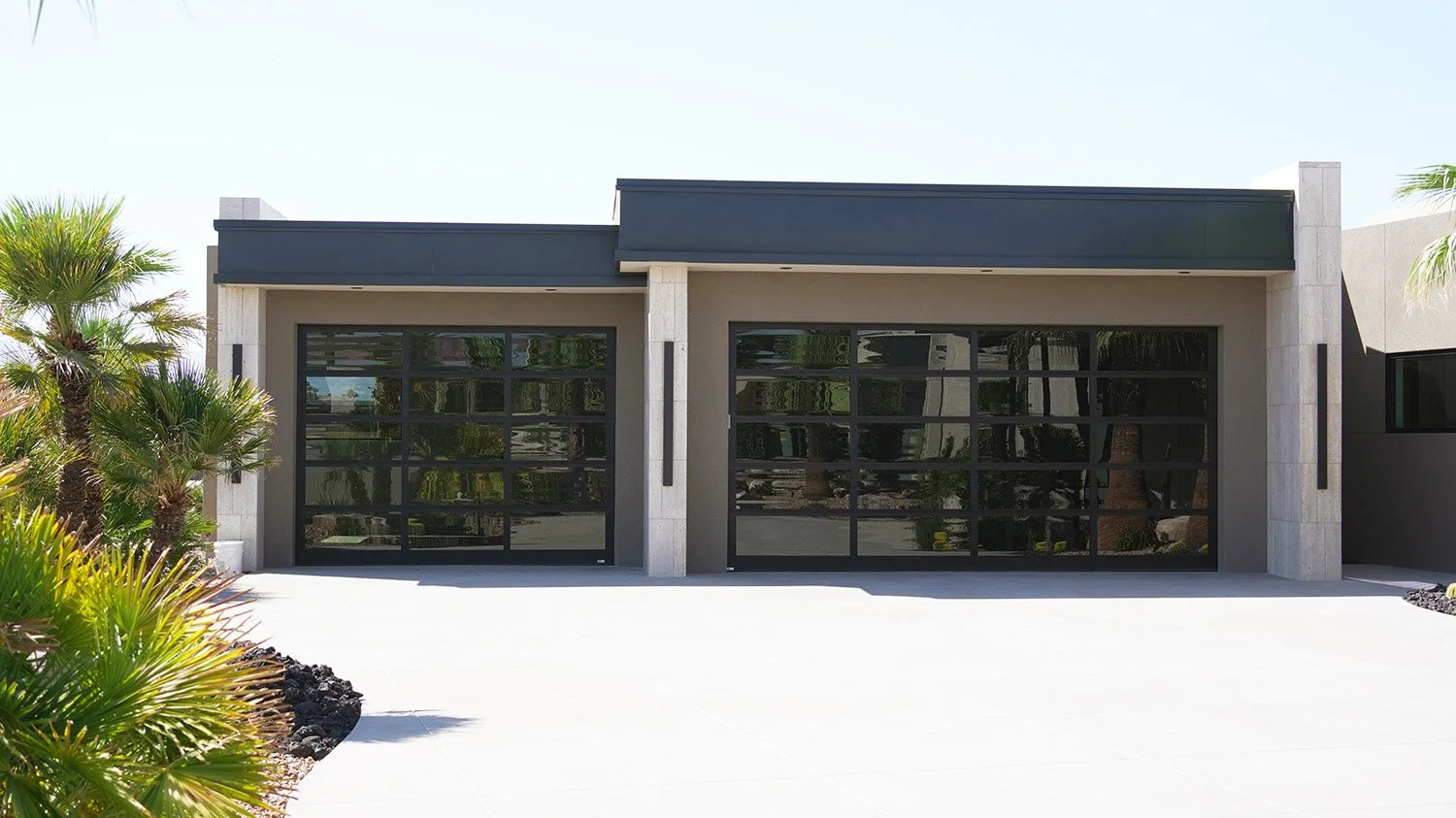

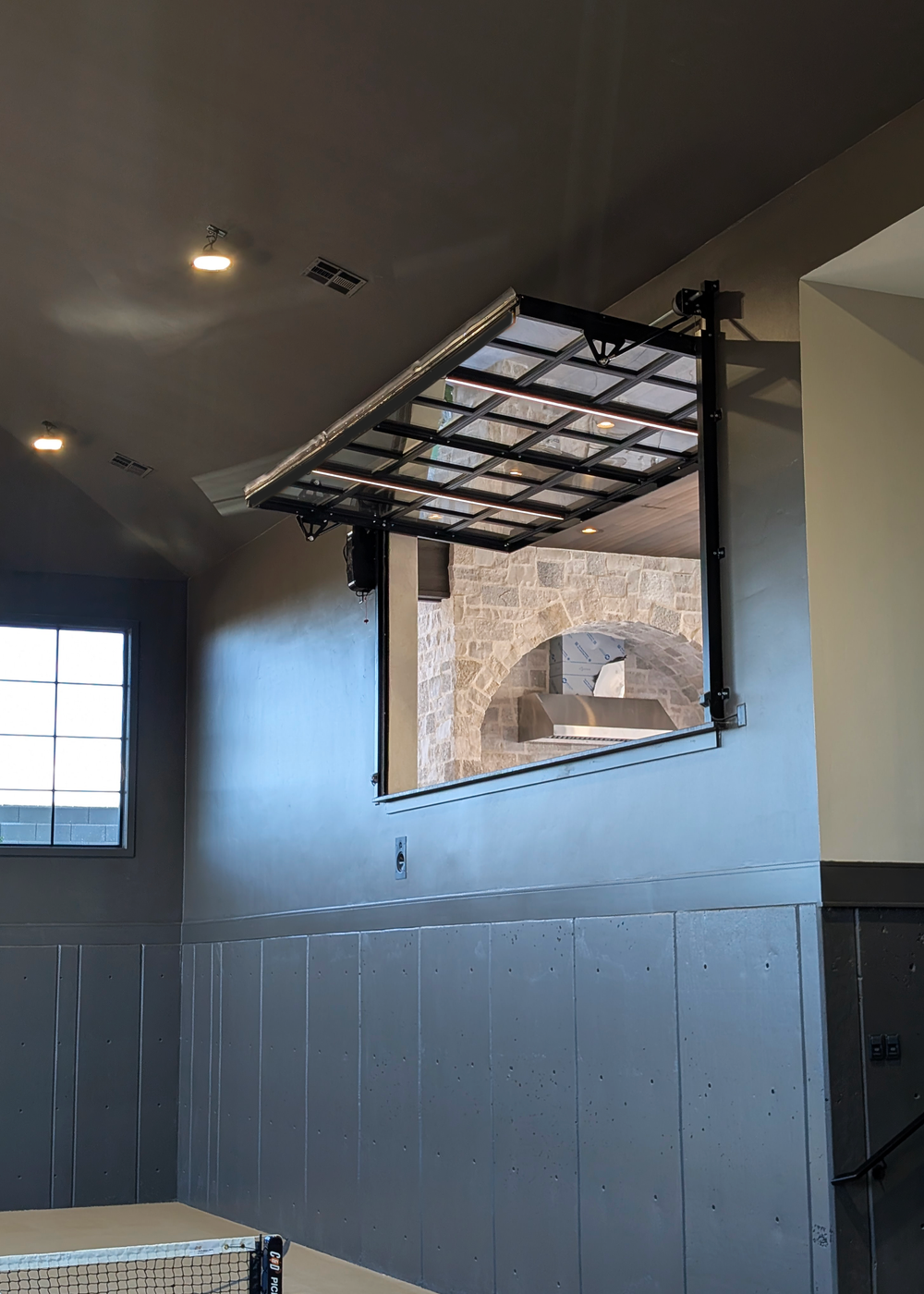

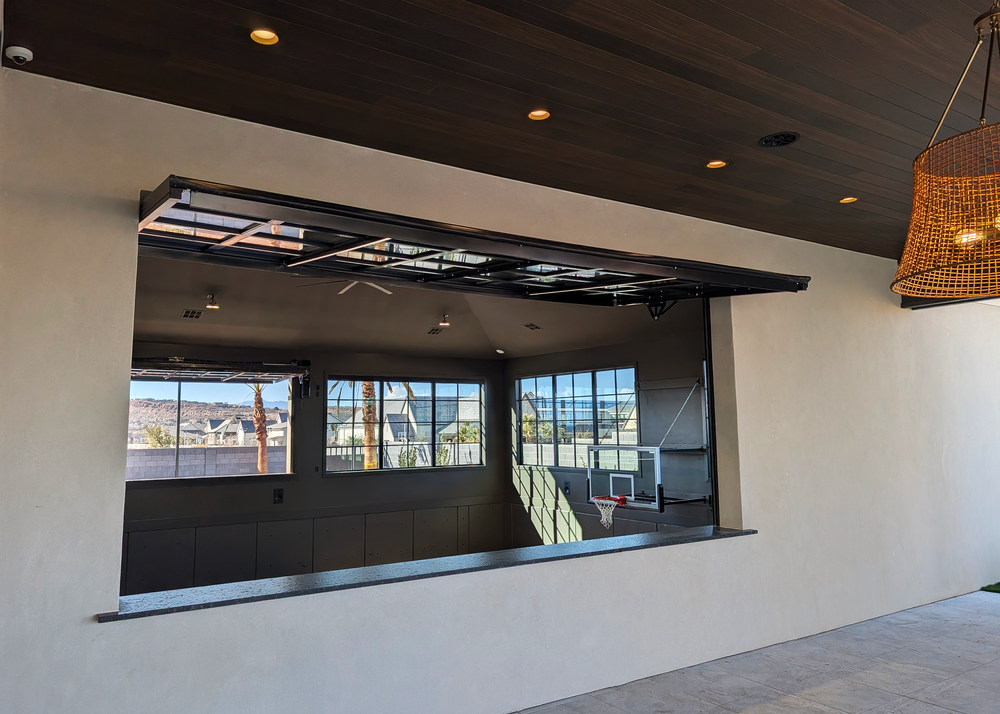

Flush modern doors, composite overlays, woodgrain plank finishes, and full-view aluminum glass all work with this hardware. Your local garage door company supplies the panels in the look you want — we provide the system that makes them pivot.
The system running.

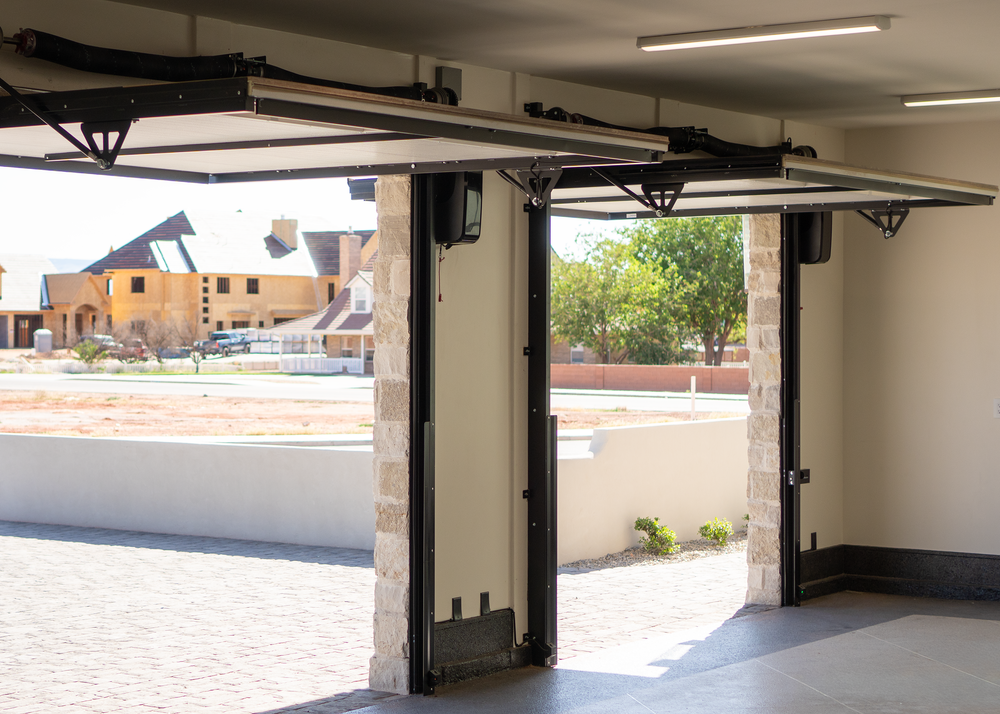

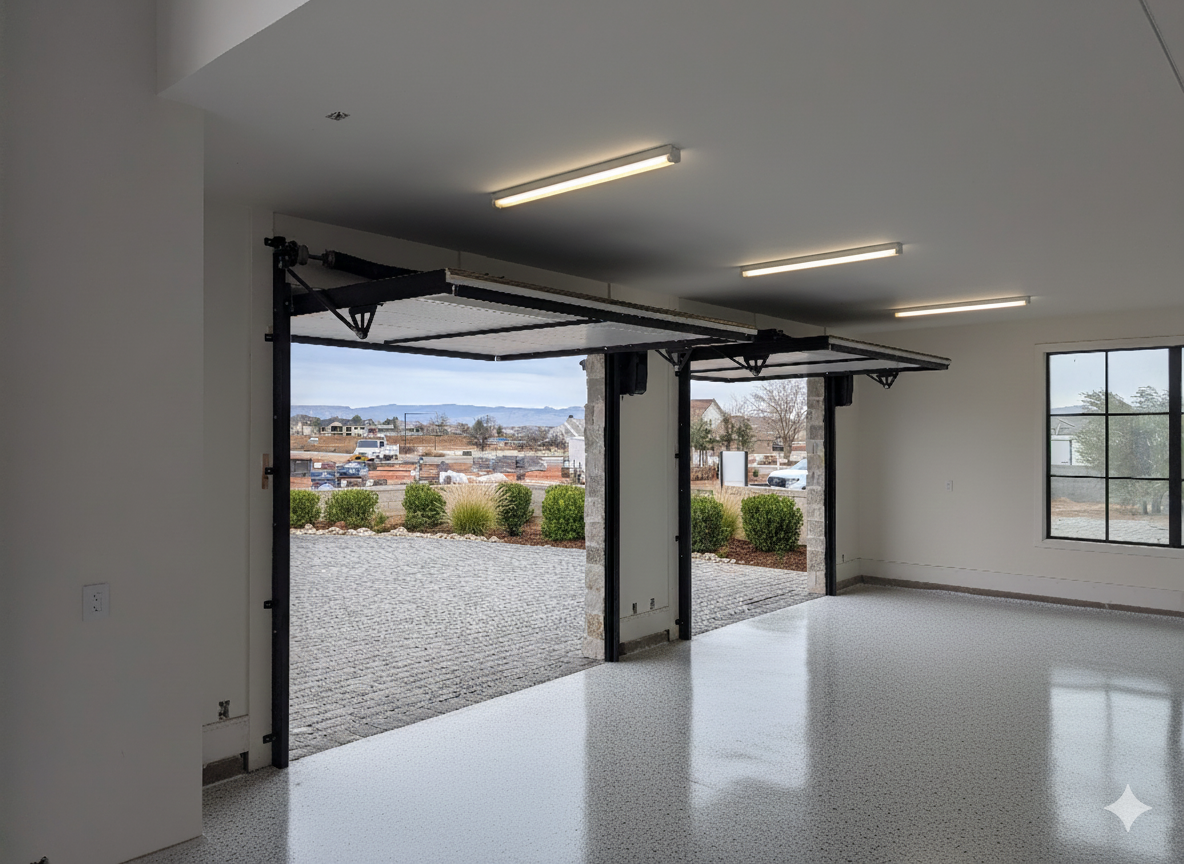

Interior view showing the full pivot motion — door opens, lights activate, ceiling completely clear. This is what the install looks like from the inside.
Engineered for daily use.
Your ceiling is not storage
for door hardware.

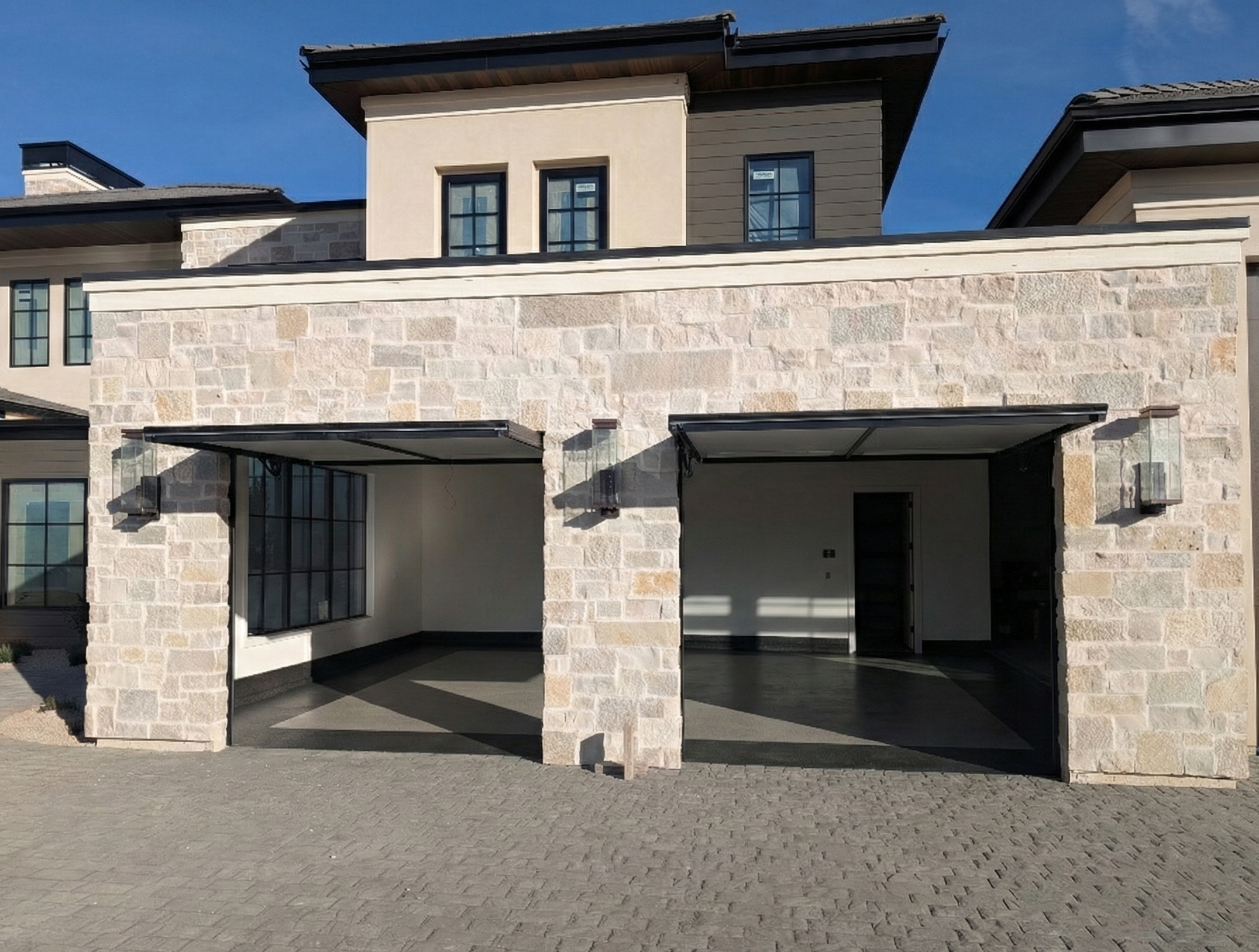

Traditional garage doors move the entire door overhead because they have to — the whole system was designed around tight clearances and cramped openings. That compromise is built into every piece of hardware on a standard door.

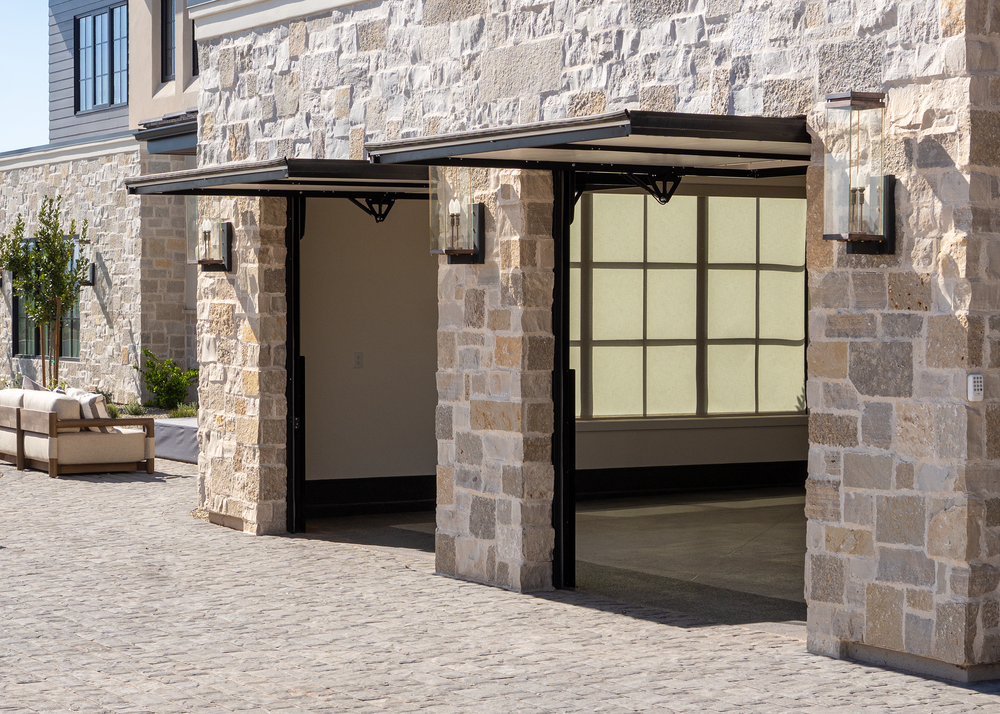

This system doesn't play those games. By keeping the door in the opening and rotating it, the door doesn't travel nearly as far into the garage when open — it pushes outward instead, into space that wasn't being used anyway. The result is more room inside, a cleaner ceiling, and a garage that actually works for the things you're putting in it.
Two-post and four-post lifts — installed without compromise.
Vehicle lifts require clean overhead clearance. Traditional door hardware makes that a negotiation. With everything wall-mounted, lifts go in at full height without modification or workaround.
The full room — not just what's left after the hardware.

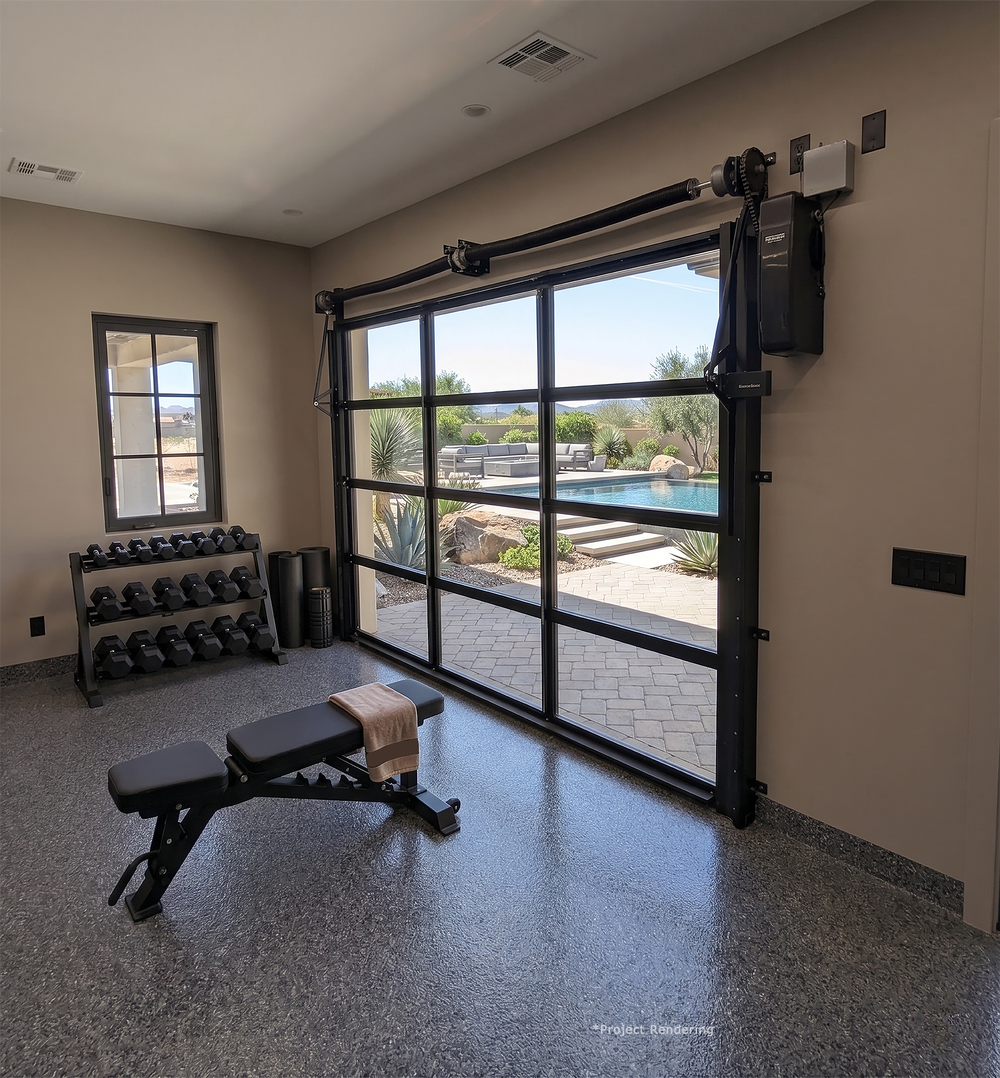

Overhead track systems shrink the usable zone the moment you step inside. Removing them gives a wood shop its full swing radius, a golf simulator its full ceiling height, a home gym its full clearance for rigs and racks.
A garage that looks like it was designed, not assembled.
For homeowners who use their garage as an extension of their living space, exposed rails and motor hardware are visual noise. Wall-mounted hardware eliminates that entirely — what remains is a clean, open ceiling.
"The overhead track was always the compromise. We built a system that removes it."
Buy Hardware Kit →
Taller openings.
Simpler solution.

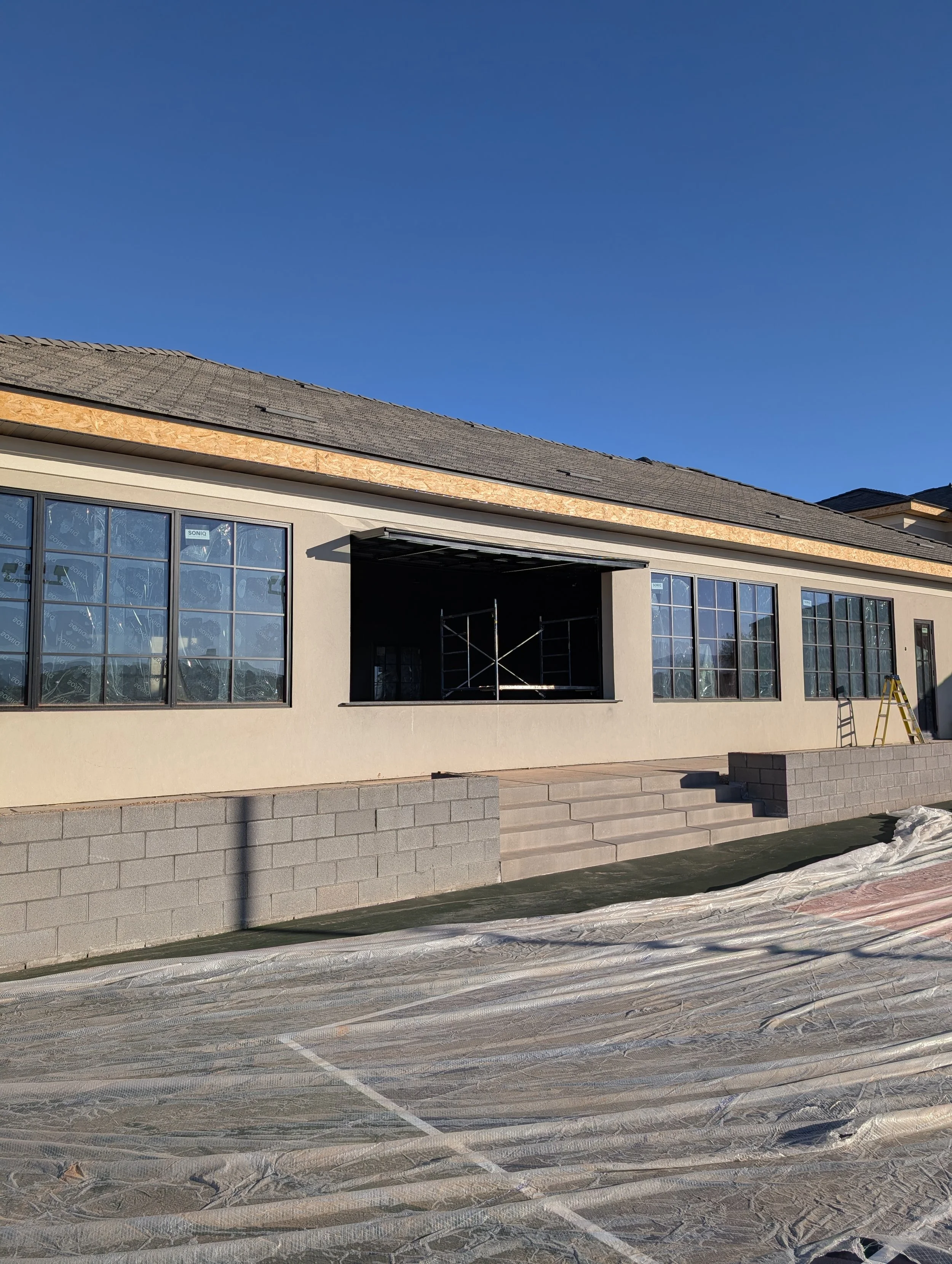

Modern homes are being built with taller walls — 9 and 10-foot garage openings are increasingly the standard rather than the exception. Traditional door systems were engineered around 7 and 8-foot openings because that's all the clearance they had to work with.
This system thrives in taller openings. Because the door stays in the opening and rotates rather than traveling overhead, taller doors are straightforward — no low-clearance gymnastics, no stacked track sections, no special hardware to accommodate the extra height. Just a cleaner system in the space it was designed for.

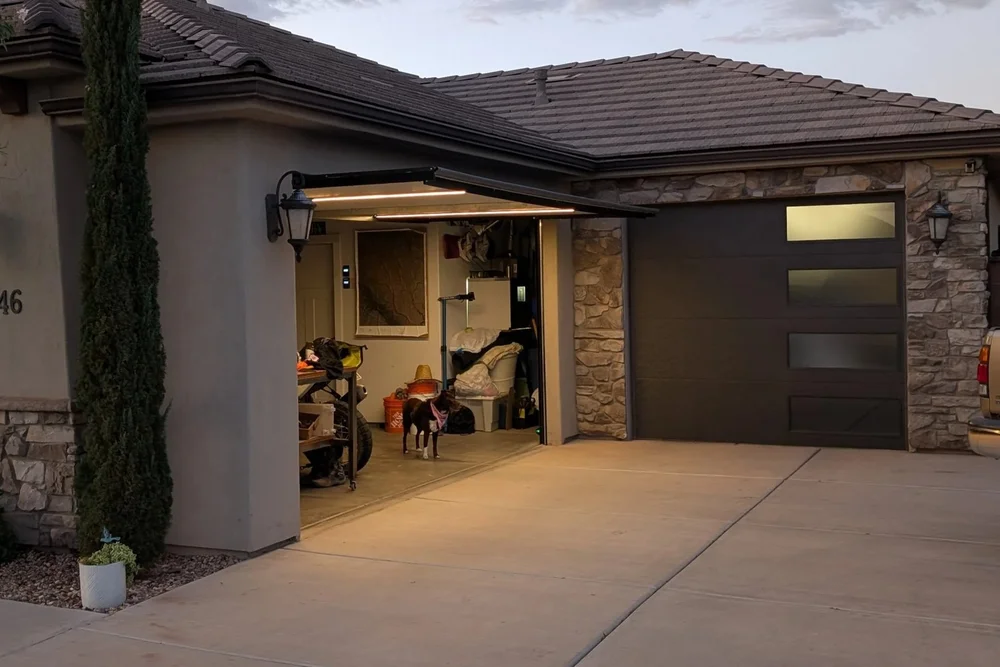

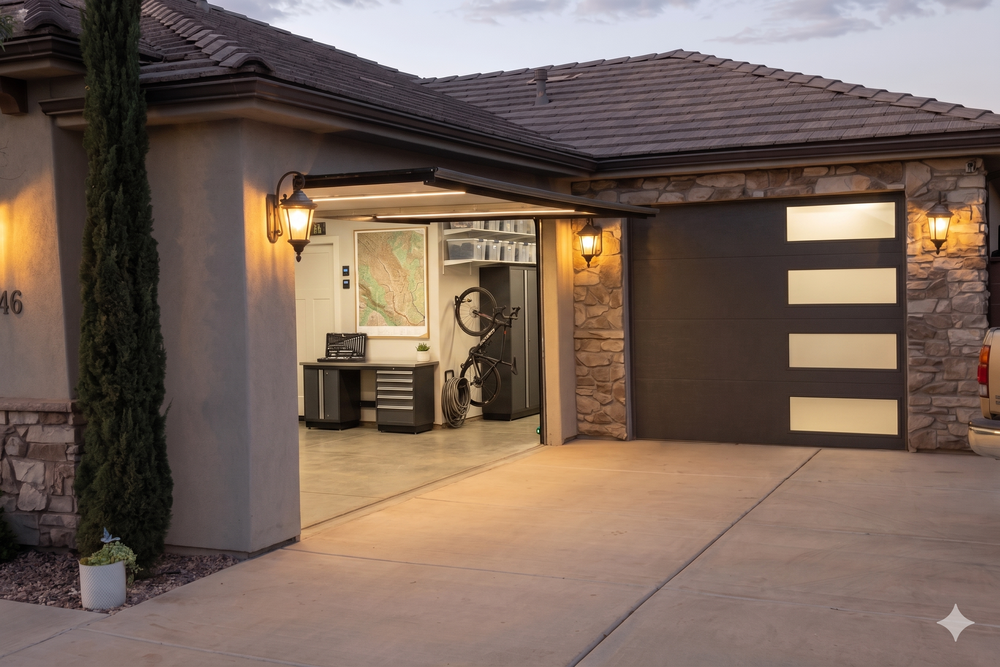

- ◆ Retrofit existing doors — no new door sections required if your panels are compatible
- ◆ Ideal for 9 ft and 10 ft openings that are standard in new construction
- ◆ Standard framing — no modifications to the rough opening
- ◆ Door sources locally — we ship the hardware, your installer provides the panels
Real light.
Not an afterthought.

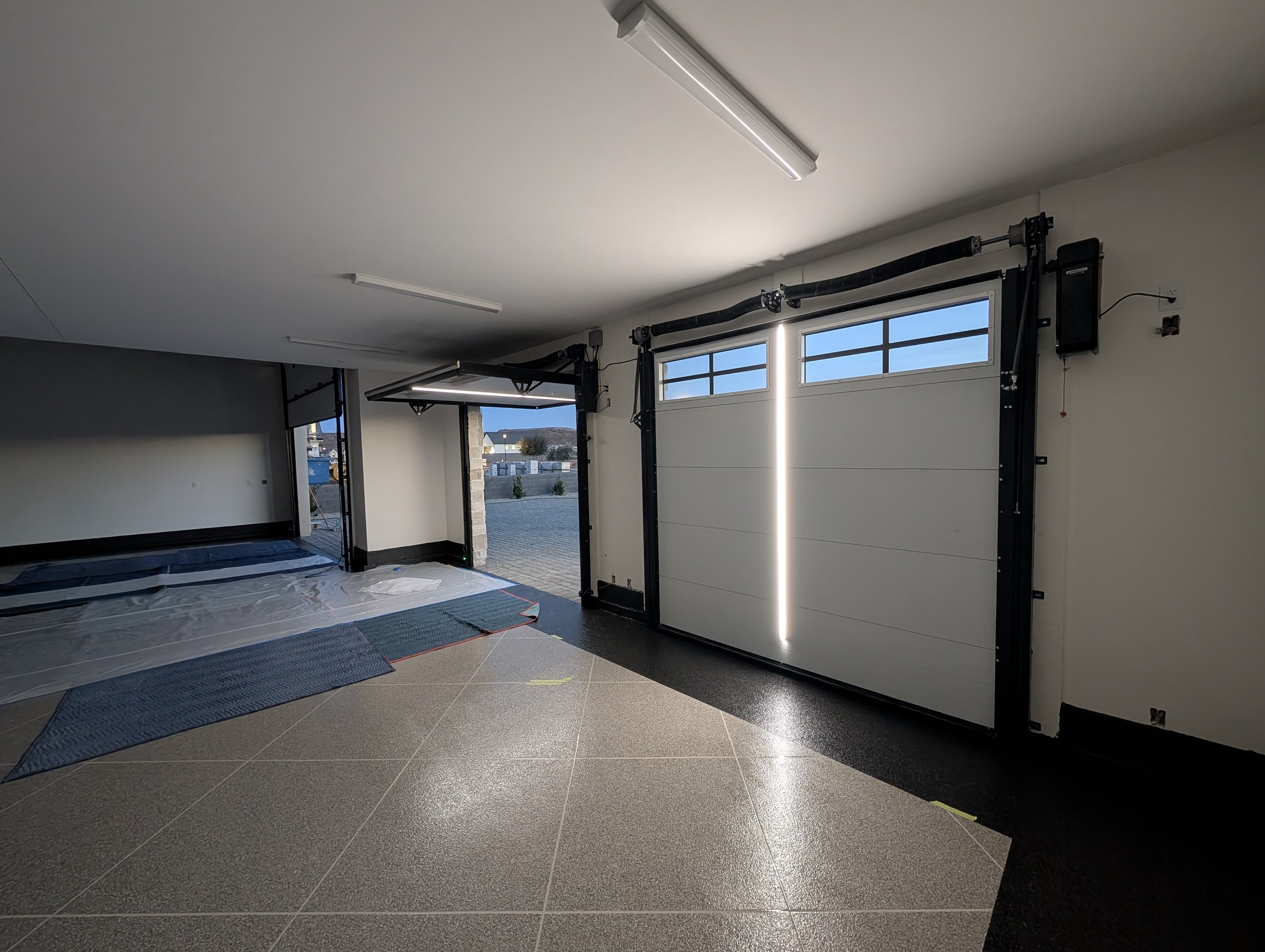

The integrated RGBW LED light bar system is plug-and-play with the LiftMaster 98022 jackshaft operator. Motion activated — turns on when the door operates, turns off automatically. No separate wiring, no programming required.

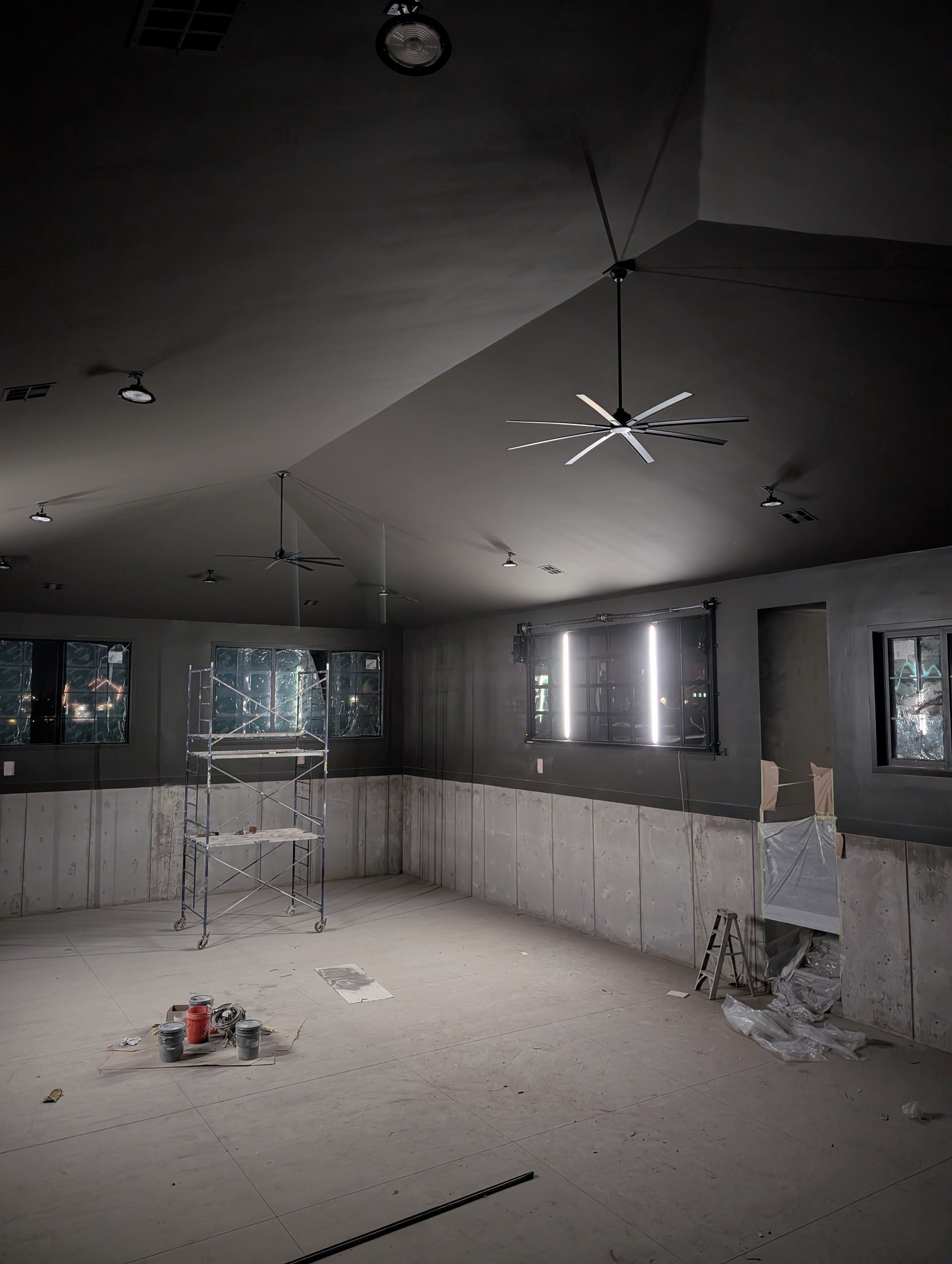

The light bars can be mounted vertically or horizontally depending on your opening configuration — and the dedicated white channel delivers real, usable task lighting, not just accent light for its own sake.
Motion Activated — Plug and Play
Plug directly into the LiftMaster 98022 jackshaft. Turns on with door operation, turns off automatically. No additional wiring or configuration needed.
Vertical or Horizontal Mounting
Light bars mount in either orientation depending on your door and opening configuration — placed to direct light exactly where it's needed when the door opens.
RGBW — Full Spectrum, Real Output
Dedicated white channel delivers true white light output — bright enough for task use, tunable for ambiance. Configured from your phone, no app required.
"The garage door is the most-used entrance in most homes. We designed this system accordingly."
Shelby Meinkey — Founder, Moenave Garage Doors
The mechanics behind the motion.

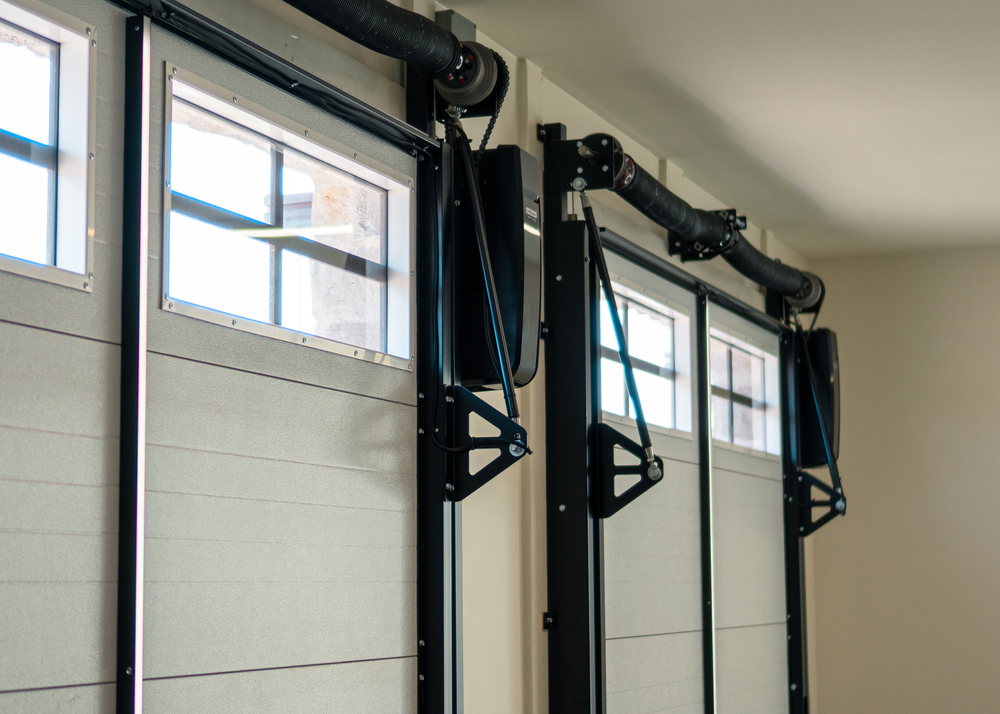

Panels Lock Into One Piece
Our hardware ties the standard sectional door panels together into a single rigid door leaf. The sections that normally hinge apart are now one unified structure.
Centralized Lift Point
Lifting force is applied at the center of the door, enabling controlled rotation while maintaining balance throughout the full range of travel.
Simultaneous Rotation and Lift
The door lifts vertically while rotating. Both motions are mechanically coupled — producing a smooth, predictable action that is consistent cycle after cycle.

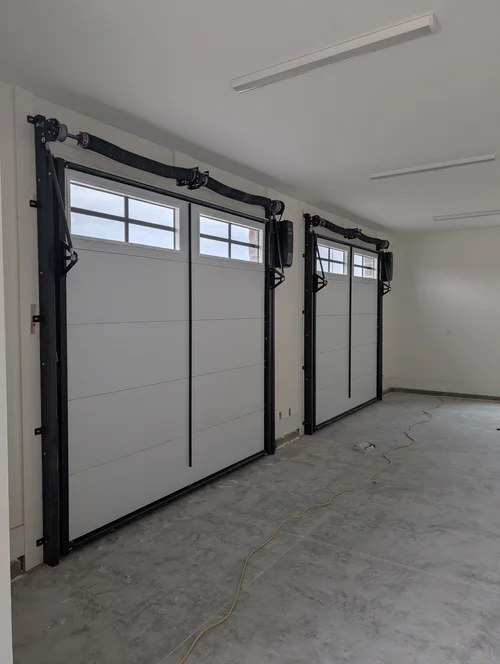

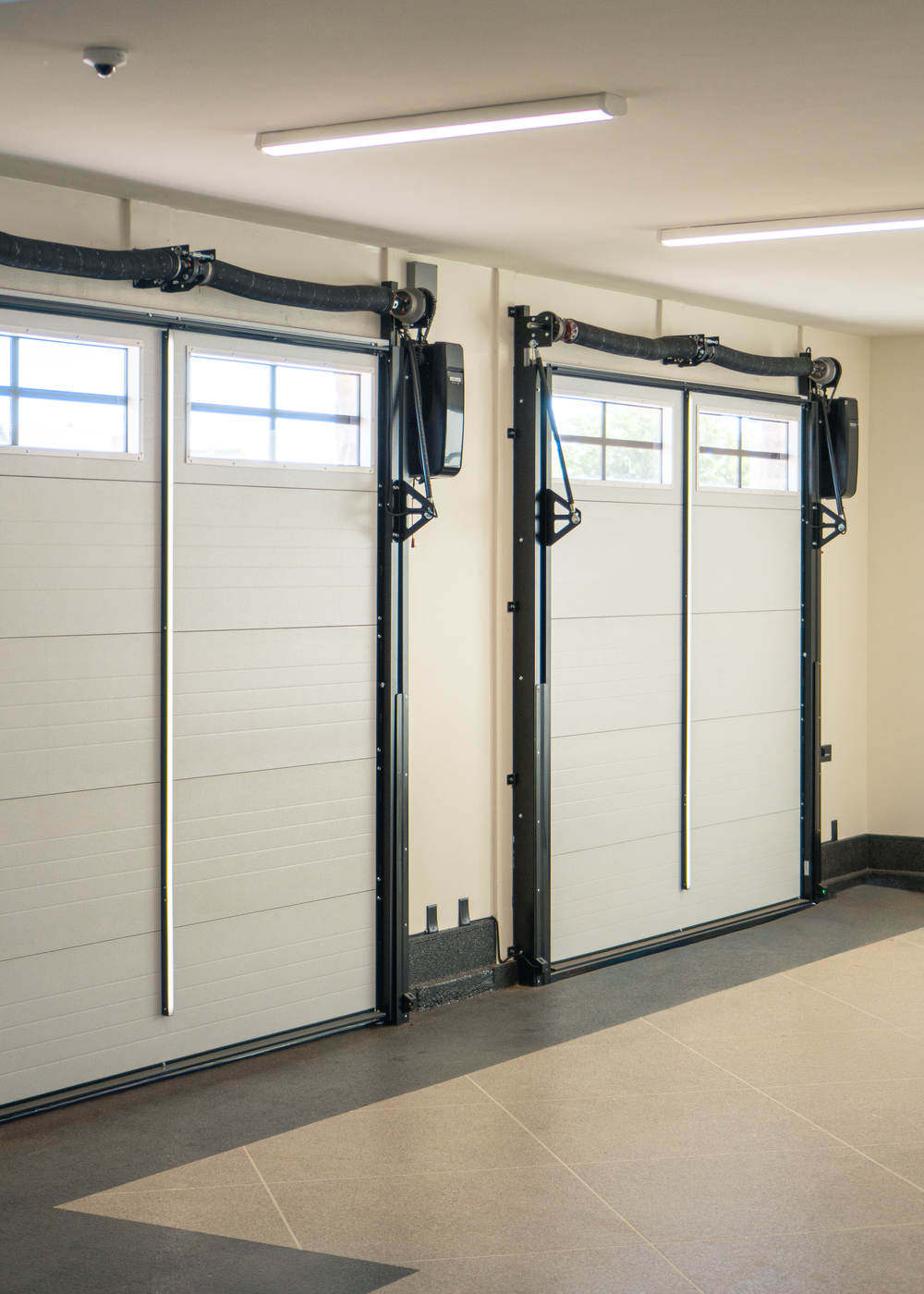

Wall-Mounted Mechanism
The entire system mounts to the wall and header using standard garage door framing. No ceiling penetrations, no specialized structure, no overhead hardware of any kind.
Integrated Motor and Control System
Drive system, smart LED controller, and LiftMaster slide lock hardware all arrive as part of the kit — tested, documented, and ready for professional installation.
Built to handle real doors.
Every system is built to order from your confirmed dimensions. These are the current operating parameters for the trackless pivot hardware. If your project is near a boundary condition, reach out before ordering — we will give you a direct answer.
Patent pending — Washington, Utah.
Everything we ship to you.

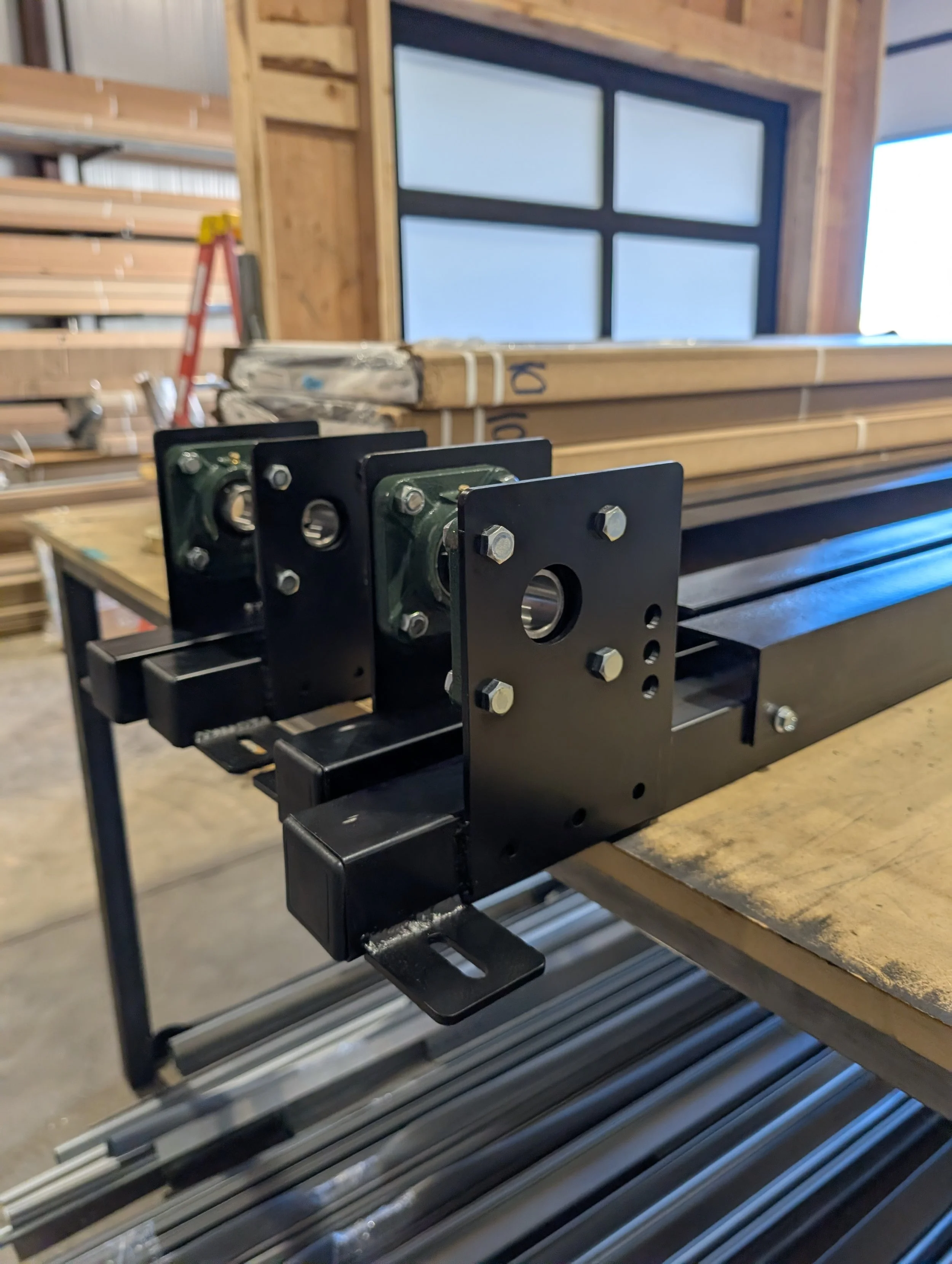

- ✦ Pivot hardware assembly — linkages and structural components
- ✦ Guide system for controlled door travel throughout full motion
- ✦ Weather seal system
- ✦ Motor mounting hardware and control system
- ✦ RGBW LED lighting controller, wall-mounted
- ✦ LiftMaster slide lock mounting bracket, drive sprocket, chain, and photo eye mounts
- ✦ All fasteners, wiring, and mounting hardware
- ✦ Full installation guide with QR-linked video walkthroughs
Your installer provides these.
The trackless pivot hardware is the conversion system — not a complete door package. Your local garage door company supplies the following standard components, which they either stock or can readily order. This keeps shipping costs down and means you get your door panels from a local company who can service them going forward.
- → Garage door sections — solid triple-layer, 1.5″–2.5″ thick
- → Door struts — required to reinforce panels for one-piece operation
- → High cycle torsion springs, shaft, and coupler
- → LiftMaster 98022 jackshaft motor
Hardware Kit,
Shipped to You.
We build the complete trackless pivot hardware kit to your specifications and ship it anywhere in the United States. Your local garage door company installs it using our documentation. We support both you and your installer throughout the process.
Buy Hardware Kit →TurnKey
Installation.
Based in Southern Utah and ready to move forward? We handle everything — design consultation, fabrication, delivery, and full installation including the lighting system. Start to finish, by our team.
Get a Quote →A traditional sectional door runs on a horizontal overhead track with a ceiling-mounted motor. This system eliminates both. The door pivots as a single piece, the hardware mounts entirely to the wall, and the ceiling is completely unobstructed from installation day forward. Fewer moving parts, less noise, nothing wearing out on the ceiling above you.
Most modern triple-layer sectional panels between 2.0″ and 2.5″ thick are compatible, including composite and full-view aluminum glass doors. The panel requires a flat interior face. Submit your dimensions and we will confirm compatibility before any payment is taken.
In many cases, yes — if your existing panels are triple-layer insulated and between 2.0″ and 2.5″ thick with a flat interior face, they may be compatible. Send us the door dimensions, panel type, and a few photos and we'll confirm before you commit to anything.
Any licensed garage door company with experience in custom or specialty installations. Every kit ships with a full installation guide and QR-linked video walkthroughs. Most experienced technicians complete the install in a single day. Our team is available by phone during the installation window, and we have a growing map of installers familiar with this system at moenave.com/dealers.
Every system is built to order based on your confirmed door dimensions, panel weight, and opening configuration. There is no off-the-shelf version. We confirm all specifications with you before fabrication begins.
Fabrication runs 3–4 weeks from confirmed order. Shipping typically adds 3–7 business days depending on your location. From order to installed door, plan for approximately 5–6 weeks, though many projects run faster. We provide an accurate timeline when your order is confirmed.
Your installer will need to source the door panel sections, door struts for panel reinforcement, torsion springs with shaft and coupler, and a LiftMaster 98022 jackshaft motor. These are standard components that most garage door companies stock or can order without difficulty. We provide a complete sourcing guide with every kit.
Built by hand,
to your specs.
Every system is fabricated in Washington, Utah — made to order against your confirmed dimensions. If the trackless pivot hardware is the right fit for your project, here is how to get started.
Outside Utah? Purchase the kit — your local installer handles the rest.
