The Moenave Trackless Pivot Door — Hardware Kit
No tracks. No rails. No compromises. The Moenave pivot system mounts entirely within the door opening — delivering a clean, architectural look that traditional garage doors simply can't achieve. This is a complete hardware kit configured specifically for your project, designed to be installed by your local garage door company or a qualified contractor.

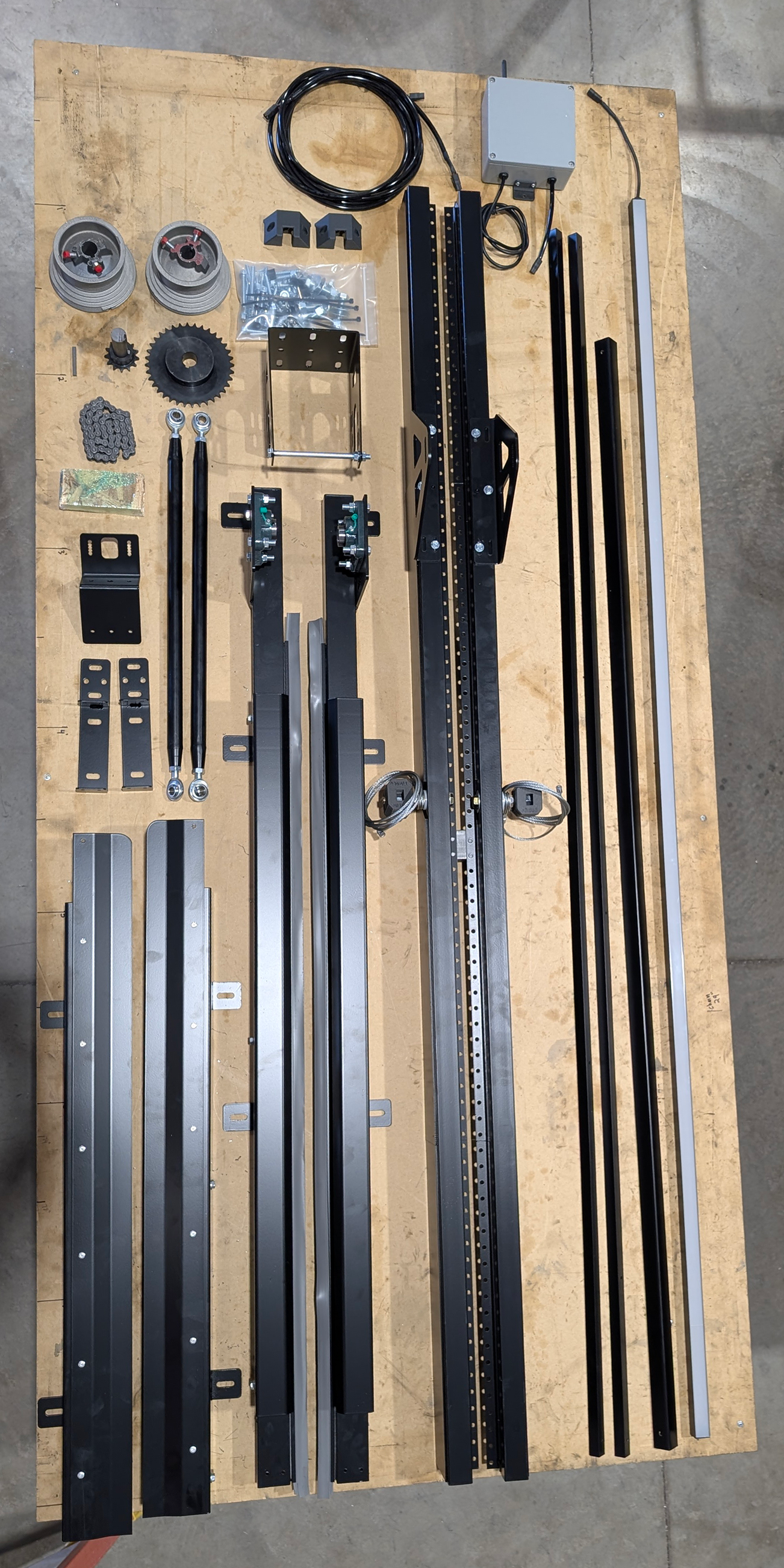

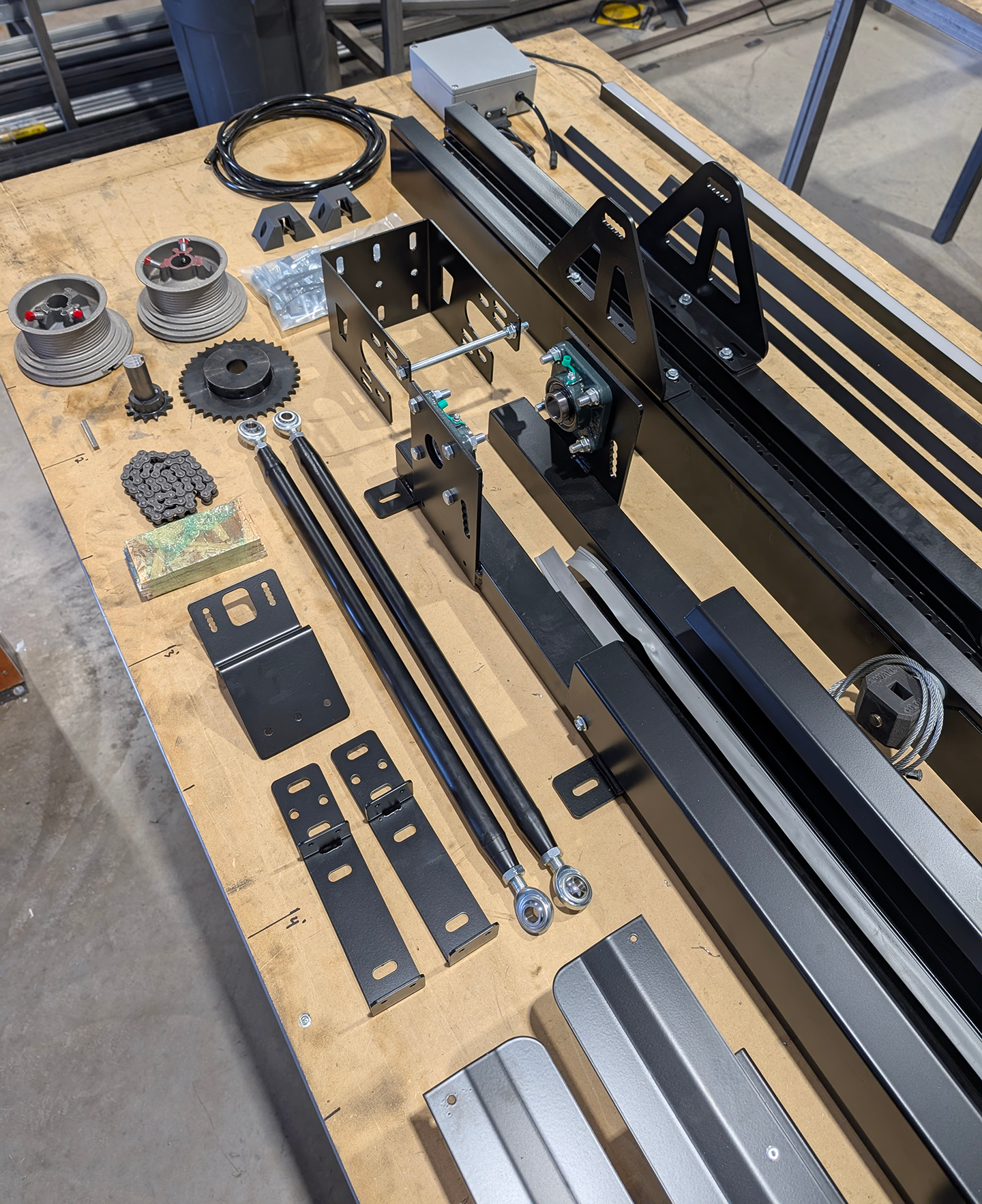

What's Included in our kit

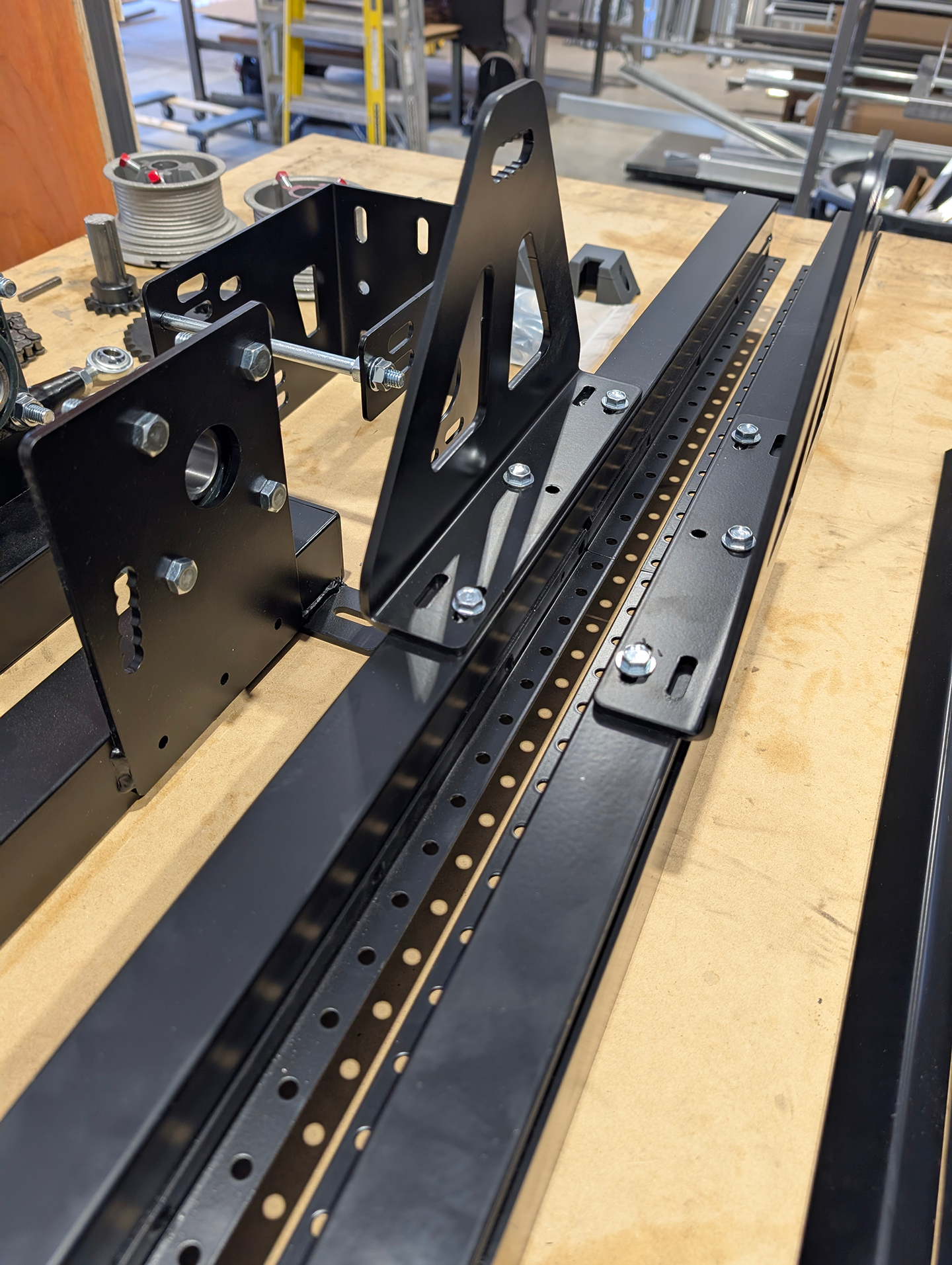

Complete trackless pivot linkage assembly
Tapered cable drums and heavy duty cables
Dual spring center plate
Mounting hardware and fasteners

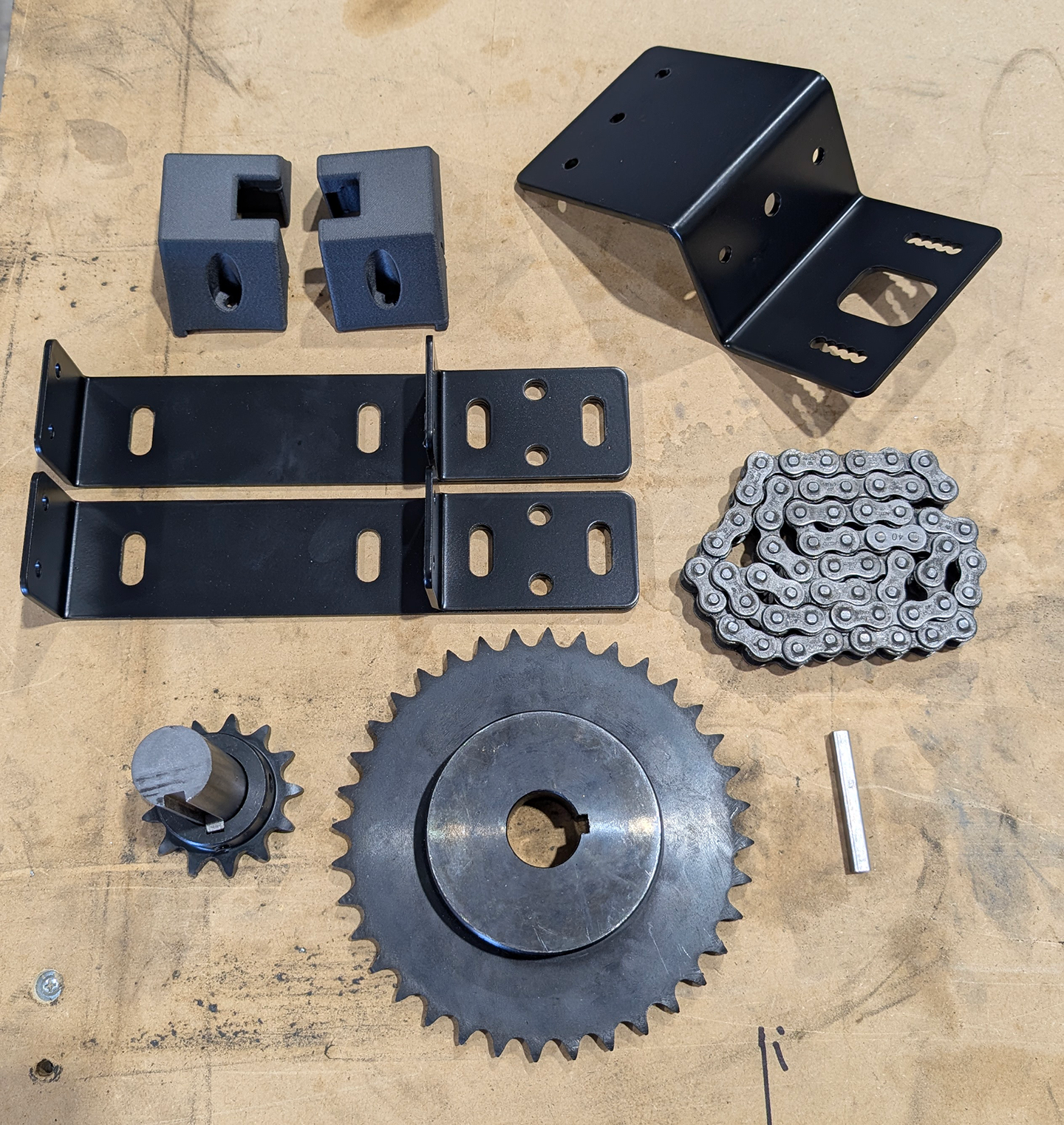

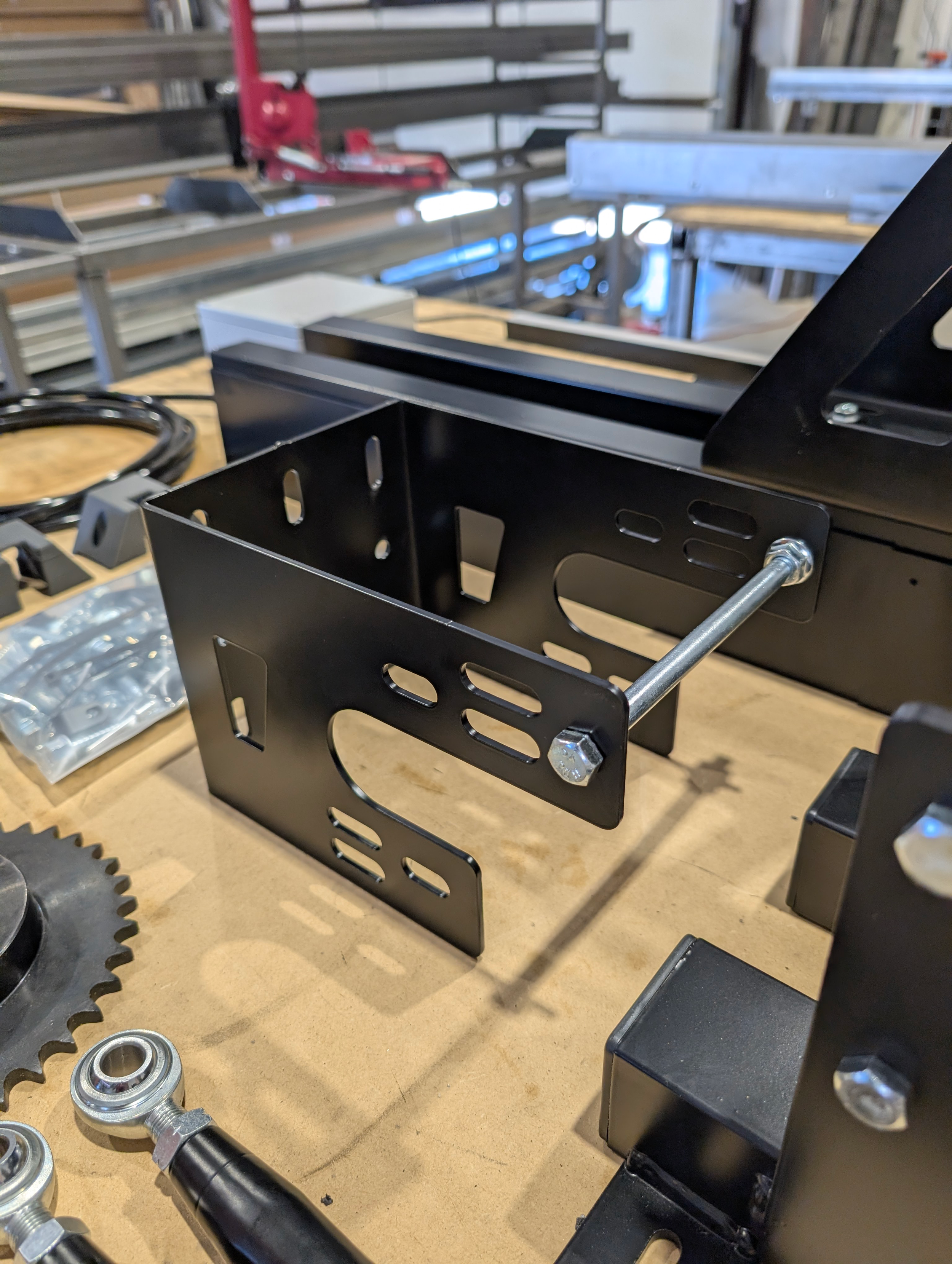

Liftmaster motor mounts, gear and sprocket assembly, slide lock mount.
Full installation manual and spring sizing guide available on our website under install-instructions page
LED light system. (Controller, wiring harness and LED strip)
These are the components that make this system possible — the parts only Moenave makes.

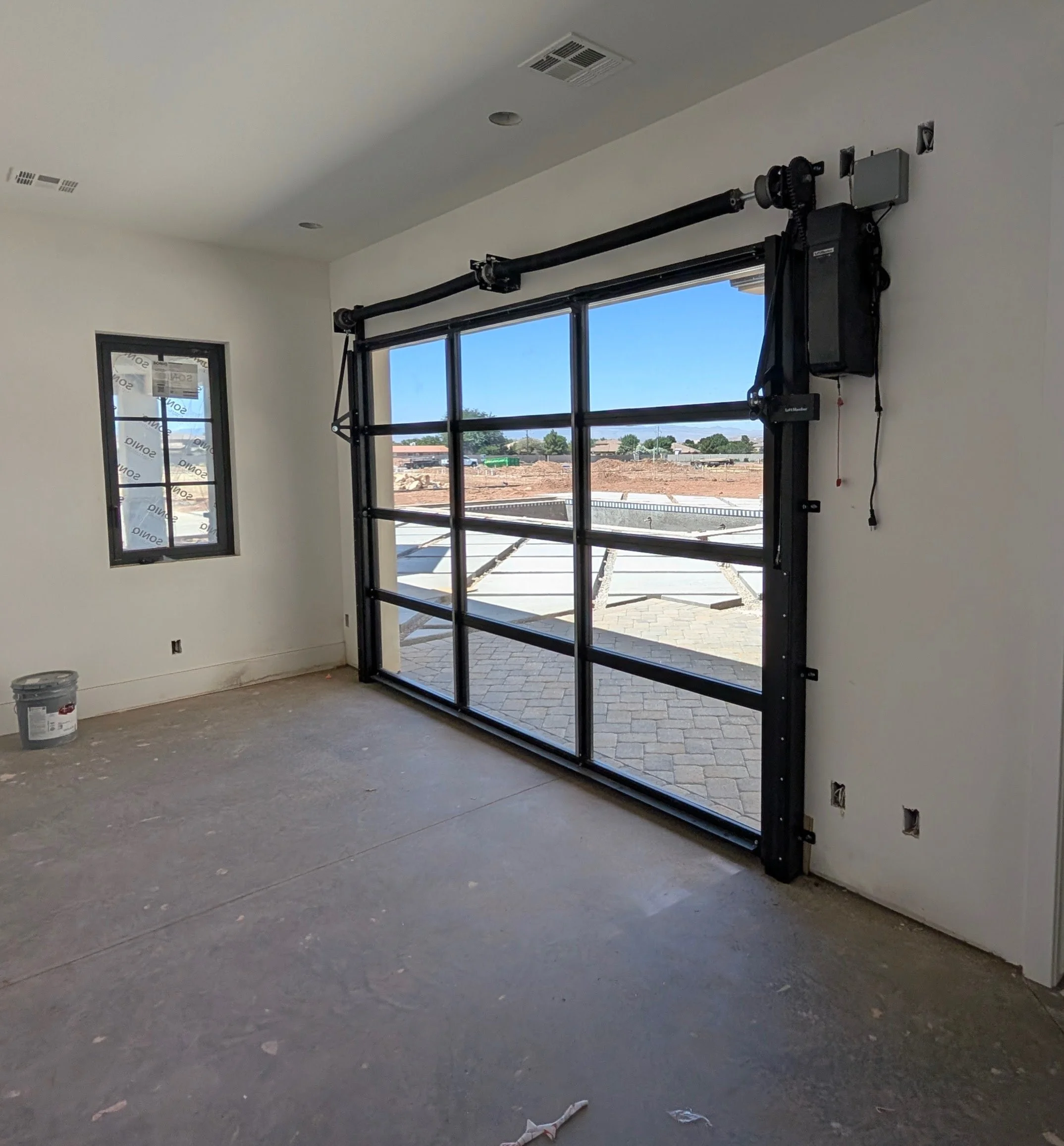

This hardware system will lock all garage door panels together into one cohesive door leaf. It includes the mounting system to attach the door assembly to the wall and gives the door the structure to pivot open. This system also includes the LED lighting system. Including controller, wiring harness and LED light bar.
What Your Installer Sources Locally
Your local garage door company will need to supply:

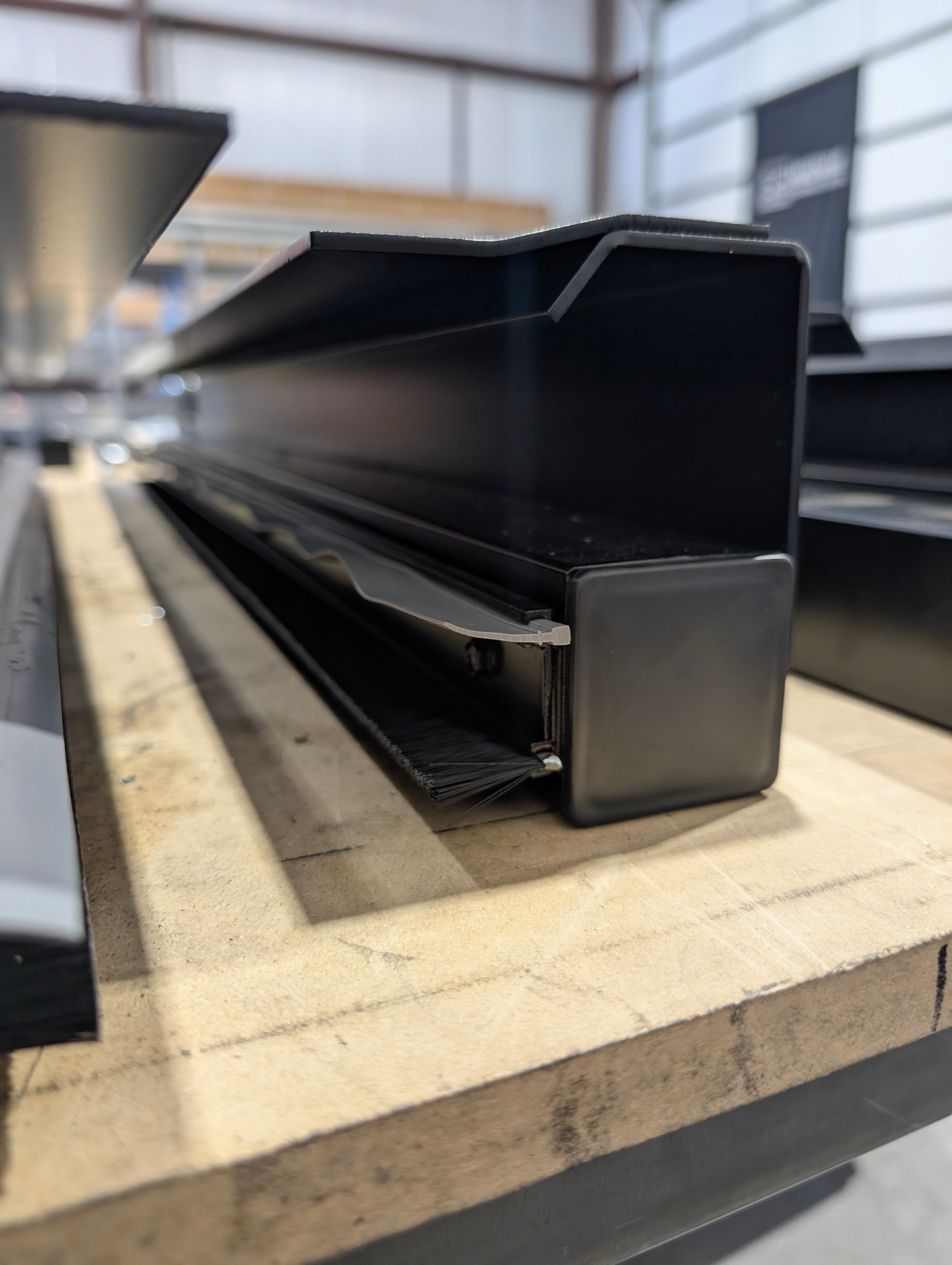

Door panels — any manufacturer, sourced through your installer. You’ll need bottom and top weather seal.
Required door struts - We always recommend at least two struts, larger doors may require more strutting.
Torsion springs, torsion tubes, center coupler and 1” bore bearings — sized to your door weight using our spring calculator, we recommend solid split shaft setups. We'll help you configure the correct springs.
Wall-mount operator — we recommend the Liftmaster 98022, widely available through most garage door dealers
This is intentional. Contact a few local garage door companies, tell them you want to install a pivot door using Moenave hardware, and ask them to quote the panels, springs, motor and installation. Most garage door companies can provide these items — the Moenave kit gives them the remaining items they need to make it work. We supply the hardware that makes the pivot system possible.
Not sure where to start? Reach out to us — we'll help you figure out the best path forward for your project: info@moenave.com
Specs
Max door weight 500 lbs (5× safety factor)
Panel thickness: 2" – 2.5"
Panel face: Flat interior required
Opening type: Square openings only
Door protrusion (open) ~50% in / 50% out.
Shipping: Lower 48 states, LTL flat rate $300
Shipping: Canada, LTL flat rate $500
Lead time: 4-5 weeks
Example: An 8' tall door will sit approximately 4' inside and 4' outside when fully open and will take up 6” of opening clearance
How to Order
Select your door height and submit your project form — door dimensions, panel specs, site conditions
We confirm within 48 hours — we review your specs and verify fit
Kit ships to you — LTL freight, flat rate $300 to the lower 48. Local pickup available in Washington, Utah.
Your installer takes it from there — full installation manual and spring sizing guide included
[Configure Your Kit →]
Installation Resources
[Installation Manual] | [Installation Overview] | [Overview Video] [Spring Calculator]
FAQ
Is this a universal kit? No — each kit is built to your exact specifications. That's what makes it work. Submit your project details and we'll configure everything correctly.
Can this work with an arched opening? Square openings are strongly recommended. Because the door pivots within the opening, an arch limits how far the door can open and may prevent full operation.
Do I need to find my own springs and motor? Yes — and that's by design. Your garage door installer will source springs, torsion tubes, panels, and an operator locally. We'll provide the spring sizing spec so they get it right. We're available to help configure the correct springs for your door weight.
Can I buy individual components? Individual components will be available soon. For now, all kits ship complete.
What's the return policy? Kits are made to order and are non-refundable. Please review the installation manual and reach out with any questions before ordering — we're happy to confirm fit before you commit.
Questions? Email us — we can respond fast: info@moenave.com
